Solid End Mills >DC2XLB >DC2XLBR0200N100

Solid End Mills

DC2XLB
(Ball nose, Short cut length, 2 flute, Long neck, For hard brittle materials)

DC2XLBR0200N100

Product Information

  • DC long neck ball nose end mill for carbide and other hard brittle materials.

The actual product may differ from the displayed image.

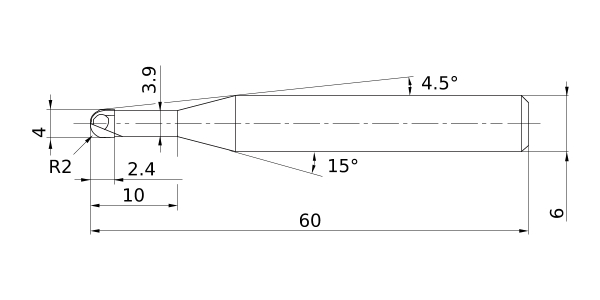

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M
DC 4
DCON 6
DN 3.9
B2 4.5°
BHTA2 15°
LF 60
LU 10
APMX 2.4
RE 2
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.008
Coated DC
2D Model (DXF)
CAD data name Download
DC2XLBR0200N100
CAD

3D Light Model (STP,STL)
CAD data name Download
DC2XLBR0200N100
CAD CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
