Drills >DVAS-PILOT >DVAS0160X02S040

Drills

DVAS-PILOT
（TRISTAR Drills）

DVAS0160X02S040

Product Information

  • Mini Size
  • TRI-Cooling is optimal for small-diameter drills and can achieve more than double the conventional coolant discharge volume.
  • Increased coolant flow provides effective cooling even in difficult applications or when using an oil based cutting fluid.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1120
Stock
Unit of Length M

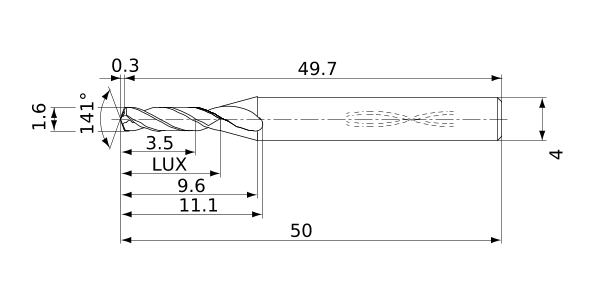

DC 1.6
DCONMS 4
SIG 141°
LF 49.7
OAL 50
LH 9.6
LU 3.5
LCF 11.1
ld 2
PL 0.3
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.006
Min. Cutting EdgeDiameter Tolerance -0.004
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
