Solid End Mills >iMX_C15T_E >IMX16C15T150R10T080E

Solid End Mills

iMX_C15T_E
（Corner radius head, Taper head, Multi-flute, With coolant holes）

IMX16C15T150R10T080E

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M

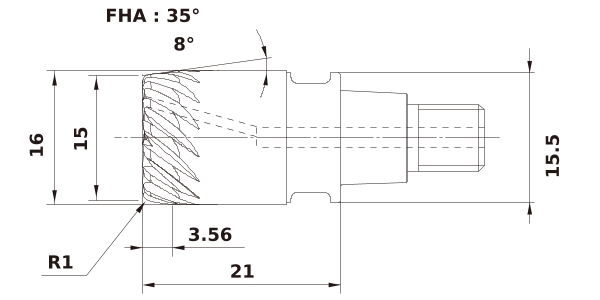

DC 15
DCX 16
DCONMS 15.5
BHTA1 8°
LH 21
APMX 3.56
FHA 35°
RE 1
Peripheral effective cutting edge count: ZEFP 15
R Tolerance - -0.015
R Tolerance + 0.015
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
