Solid End Mills

VFR2MV
（End mill, Medium cut length, 2 flute, Irregular helix flutes, For hardened materials）

VFR2MVD0600

Product Information

  • Irregular helix angle and irregular pitch flutes, combined with a highly rigid centre suppresses chatter and vibration.

The actual product may differ from the displayed image.

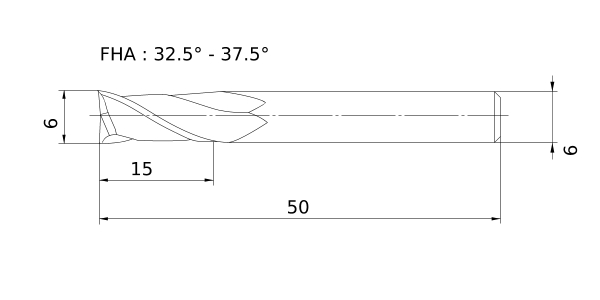

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 6
DCONMS 6
LF 50
APMX 15
FHA 32.5°,37.5°
Peripheral effective cutting edge count: ZEFP 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VFR
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
