Threading

CSVH


CSVHR1212

Product Information

  • For cam type tool posts.
  • Single holder for front turning,back turning,grooving,threading and cutting off operations.

The actual product may differ from the displayed image.

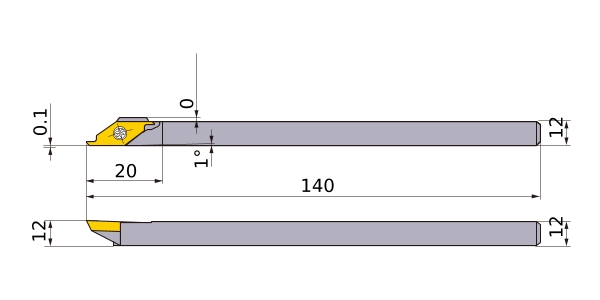

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
B 12
LF 140
LH 20
HBKW 0
H 12
HF 12
S10 0.1
Peripheral effective cutting edge count: ZEFP 1
Insert Number CSVT
2D Model (DXF)
CAD data name Download
CSVHR1212
CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
