Threading >MTH >MTHL1616H4

Threading

MTH
（MT Holder）

MTHL1616H4

Product Information

  • Clamp-on type
  • Positive insert suffers from negligible chattering and thus produces good finished surface.
  • Insert width less than 4.5mm

The actual product may differ from the displayed image.

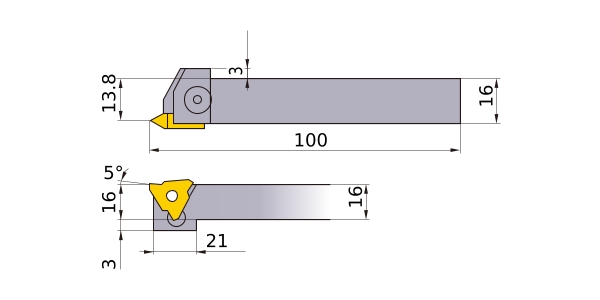

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
B 16
LF 100
HBL 21
WF 13.8
HBKW 3
H 16
HF 16
HBH 3
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
MTHL1616H4
CAD
