Turning Inserts >NP-VNMM160404R-F

Turning Inserts

NP-VNMM160404R-F

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI NP-VNMM331RF
Hand R
Stock
Unit of Length M

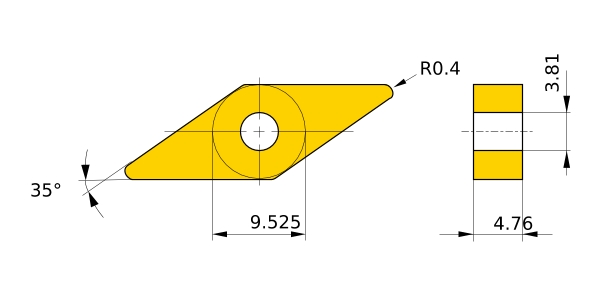

D1 3.81
IC 9.525
EPSR 35°
LE 2.5
S 4.76
RE 0.4
Breaker R-F
