Turning Inserts >MGTL43270

Turning Inserts

MGTL43270

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP20MF
ANSI MGTL43270
Hand L
Stock
Unit of Length M

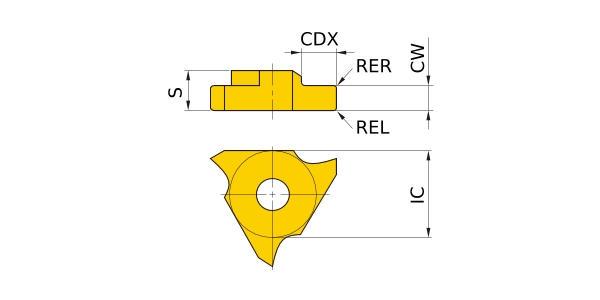

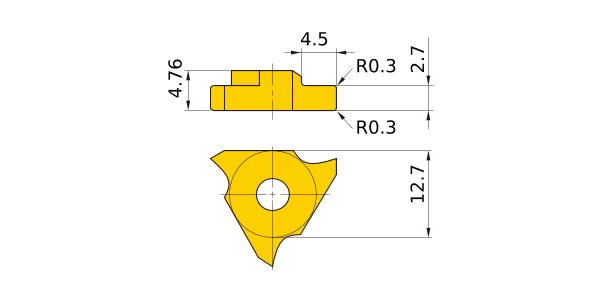

D1 5.16
IC 12.7
CDX 4.5
CW 2.7
S 4.76
REL 0.3
RER 0.3
Tolerance CW:±0.025
Classification of Grades
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
MGTL43270
CAD
