Turning Inserts >MMT16IR150TR

Turning Inserts

MMT16IR150TR

Product Information

The actual product may differ from the displayed image.

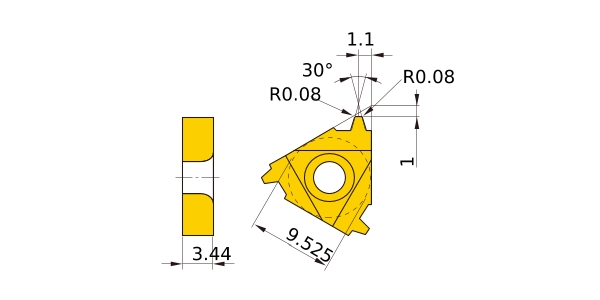

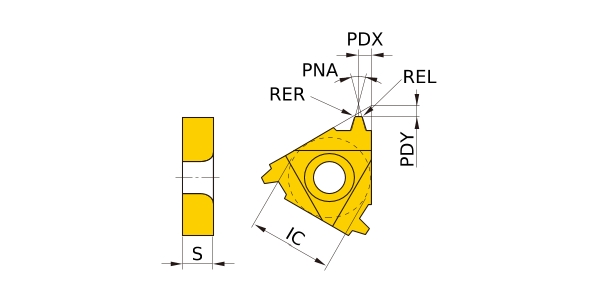

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10MF
ANSI MMT16IR150TR
Hand R
Stock
Unit of Length M
IC 9.525
PNA 30°
CW 1.5
S 3.44
PDX 1.1
PDY 1
REL 0.08
RER 0.08
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Threading Holder
