Turning Inserts >MMT16IR100ISO-S

Turning Inserts

MMT16IR100ISO-S

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI MMT16IR100ISO-S
Hand R
Stock
Unit of Length M

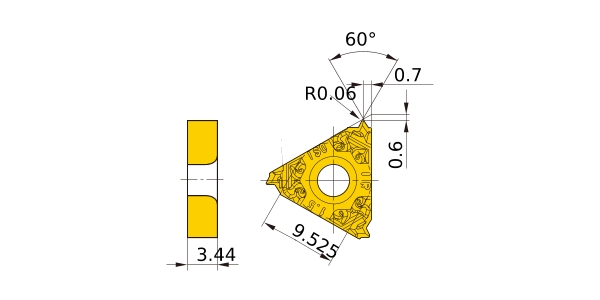

IC 9.525
PNA 60°
CW 1
S 3.44
PDX 0.7
PDY 0.6
RE 0.06
Classification of Grades
