Turning Inserts >BF-DCGT11T304TS2

Turning Inserts

BF-DCGT11T304TS2

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8110
ANSI BF-DCGT32.51-TS2
Hand N
Stock
Unit of Length M

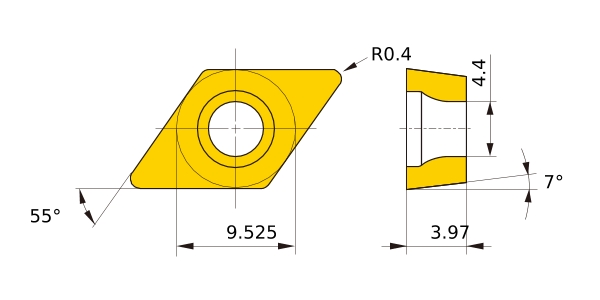

D1 4.4
IC 9.525
EPSR 55°
AN 7°
LE 2.1
S 3.97
RE 0.4
Breaker BF
