Turning Inserts >CCGT060202ML-SN

Turning Inserts

CCGT060202ML-SN

Product Information

The actual product may differ from the displayed image.

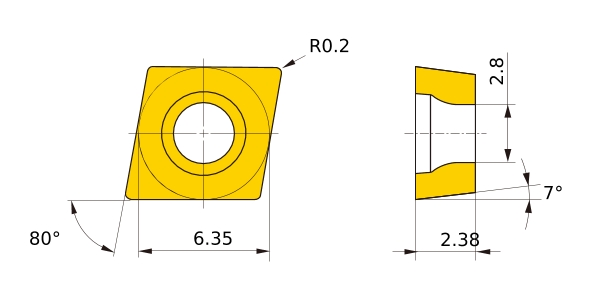

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade MS6015
ANSI CCGT21.50.5MLSN
Hand L
Stock
Unit of Length M
D1 2.8
IC 6.35
EPSR 80°
GAN 20°
AN
LBB 1
LE 3
S 2.38
RE 0.18
Breaker L-SN
3D Detail Model (STP,STL)
CAD data name Download
CC060202L
CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
