Turning Inserts >GW1M0300F020R05-GS

Turning Inserts

GW1M0300F020R05-GS

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP20RT
ANSI GW1M0300F020R05-GS
Hand N
Stock
Unit of Length M

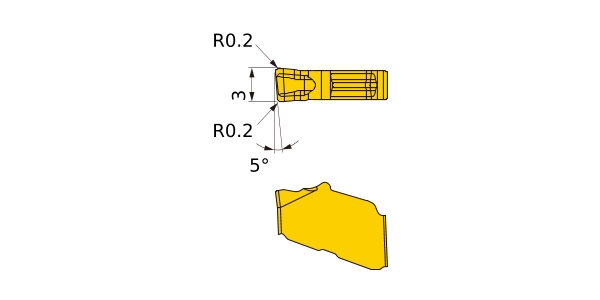

PSIRR 5°
CW 3
REL 0.2
RER 0.2
Breaker R-GS
Classification of Grades
Coated・Carbide VP10RT
Coated・Carbide VP30RT
2D Model (DXF)
CAD data name Download
GW1M0300F020R05-GS
CAD
