Turning Inserts >DCET070204ML-SRF

Turning Inserts

DCET070204ML-SRF

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9025
ANSI DCET21.51MLSRF
Hand L
Stock
Unit of Length M

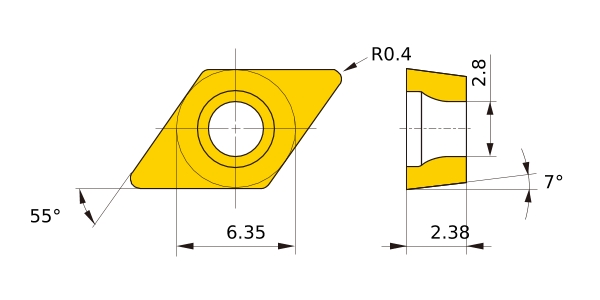

D1 2.8
IC 6.35
EPSR 55°
AN 7°
S 2.38
RE 0.4
Breaker L-SRF
Classification of Grades
Coated・Carbide MS7025
Coated・Carbide MS9025
Coated・Carbide VP30RT
Non-coated・Carbide MT9005
