Torneamento interno

DPDH
（Cabeça de mandrilar tipo D）

DPDH140R

Informação do produto

  • Econômicos insertos negativos.
  • Fixação por alavanca.
  • Cabeça intercambiável.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Ampliar ]

Tipo   [Ampliar ]

Diâmetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sentido de corte R
Estoque
Unidade de comprimento M

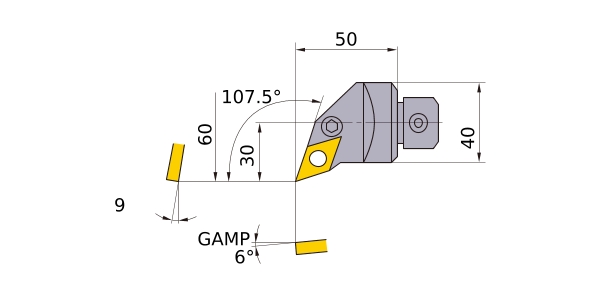

DMIN 60
DCON 40
KAPR 107.5°
LF 50
WF 30
GAMF 9
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Número do inserto DN__1504
