Brocas >TAW >TAWMB2700S32

Brocas

TAW


TAWMB2700S32

Informação do produto

  • Aresta de corte em hélice para melhor controle do cavaco.
  • Geometria serrilhada para melhor fixação do inserto.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Ampliar ]

Tipo   [Ampliar ]

Diâmetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Estoque

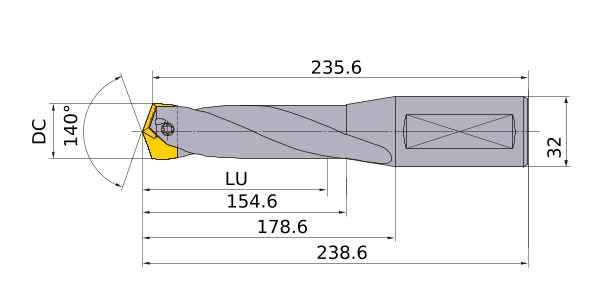

Unidade de comprimento M
DCON 32
SIG 140°
LF 235.6
OAL 238.6
LH 178.6
LBX 154.6
ld 5
Cutting item count: CICT 1
Effective Cutting Edge 2
Tipo de refrigeração Interno
