Fresas de topo(TIPO INTERCAMBIÁVEL)

BRP6
（Firemill）

BRP6PR403LS32

Informação do produto

  • Insertos 11° positivos.
  • Insertos redondos com alta resistência da aresta.
  • Grande variedade de tamanhos.
  • Para desbaste de moldes e matrizes.
  • Máx. profundidade de corte 5.5mm
  • Fresamento multifuncional.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

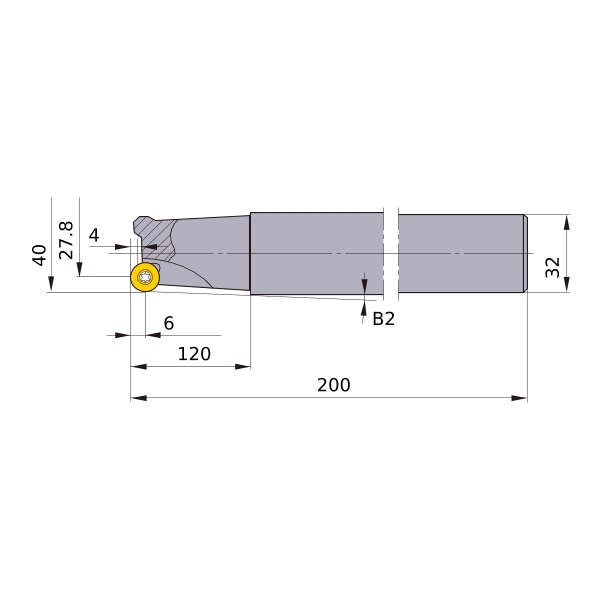

Tipo   [Ampliar ]

Tipo   [Ampliar ]

Diâmetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sentido de corte R
Estoque
Unidade de comprimento M
AZ 4
DC 27.8
DCX 40
DCON 32
LF 200
LH 120
APMX 6
GAMP +5°
GAMF -4°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
Modelo 2D (DXF)
Nome do arquivo CAD Download
BRP6PR403LS32
CAD
