Fresas de topo >ARP >ARP5PR3204AM1640

Fresas de topo

ARP
（Fresa toroidal para materiais de difícil usinabilidade）

ARP5PR3204AM1640

Informação do produto

  • Previne o batimento na troca de arestas.
  • Rígido sistema de fixação.
  • Tipo passo extrafino disponível como item standard.

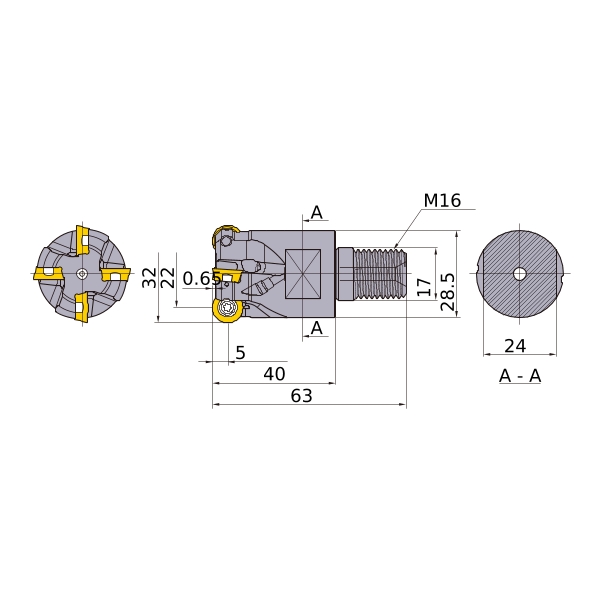

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Ampliar ]

Tipo   [Ampliar ]

Diâmetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sentido de corte R
Estoque
Unidade de comprimento M
A1 1
AZ 0.65
DC 22
DCX 32
DCON 17
DCSFMS 28.5
RMPX 1.9°
LF 40
OAL 63
S10 24
APMX 5
GAMP +4°
GAMF -7°
WT 0.15
CRKS M16
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
Modelo 2D (DXF)
