Fresa de face >OCTACUT >OCTACUT1006DR

Fresa de face

OCTACUT


OCTACUT1006DR

Informação do produto

  • Tipo inserto pequeno.
  • Fresamento multifuncional.
  • Inserto standard
  • Insertos 20° positivos.
  • Insertos redondos e octogonais.
  • Fresamento multifuncional.

The actual product may differ from the displayed image.

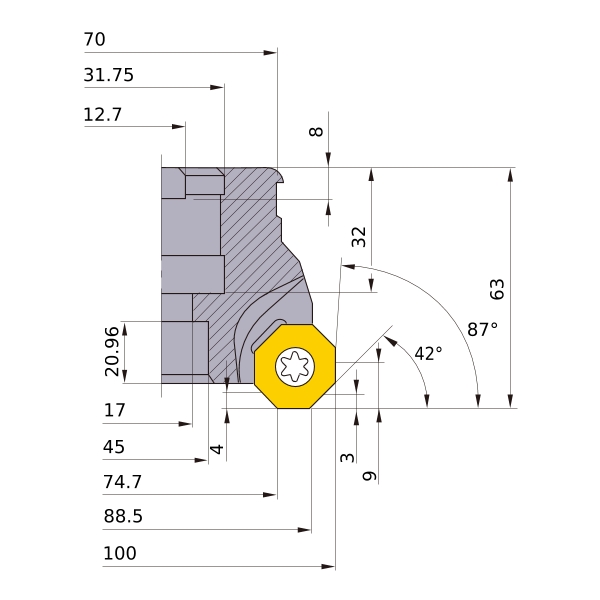

For details, please check the dimensions below.

Tipo   [Ampliar ]

Tipo   [Ampliar ]

Diâmetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sentido de corte R
Estoque
Unidade de comprimento M
A1 3
AZ 4
DC 88.5
DCX 100
DCON 31.75
DCSFMS 70
DAH 17
DCCB 45
KAPR 42°
RMPX 2.95
L8 8
LF 63
CBDP 32
LCCB 20.96
KWW 12.7
APMX 9
DCINX 74.7
GAMP 13°
GAMF -4°
WT 1.6
Peripheral effective cutting edge count: ZEFP 6
