Mitsubishi Materials Catálogo eletrônico | Informação de produtos | Fresa de face | AHX440S

Inserto heptagonal bifacial.
Insertos econômicos com 14 arestas de corte.
Design multi-insertos para usinagem de alto avanço.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Diâmetro ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sentido de corte

R

Estoque

Unidade de comprimento

M

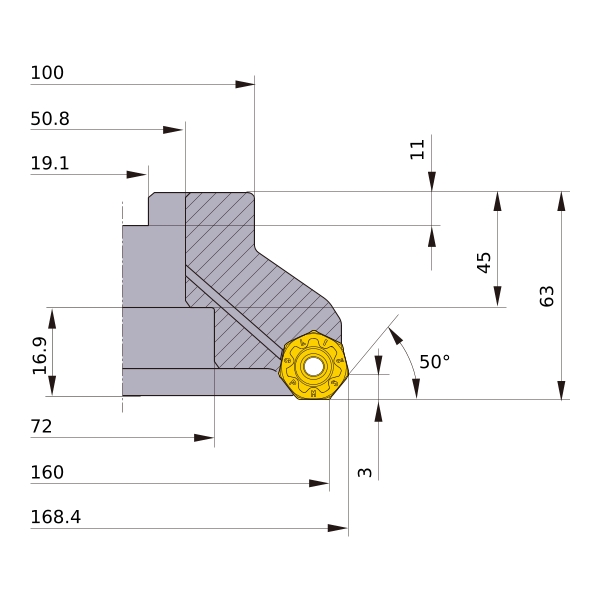

DC

160

DCX

168.4

DCON

50.8

DCSFMS

100

DCCB

72

KAPR

50°

L8

11

LF

63

CBDP

45

LCCB

16.9

KWW

19.1

APMX

3

GAMP

-6°

GAMF

-7°

WT

4.8

Peripheral effective cutting edge count: ZEFP

10

Modelo 2D (DXF)
Nome do arquivo CAD	Download
