Insertos (para ferramentas rotativas)

TAWNH2400T

Informação do produto

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Ampliar ]

Tipo   [Ampliar ]

Diâmetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nome da classe Metal duro
Classe VP15TF
ANSI TAWNH2400T
Estoque

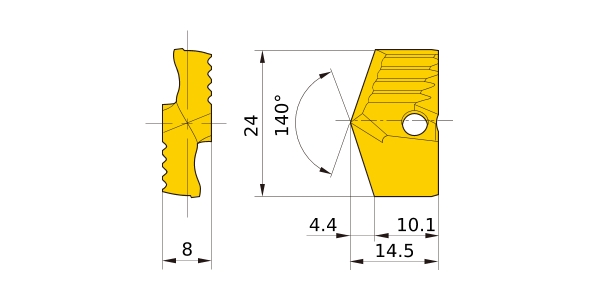

Unidade de comprimento M
SIG 140°
LF 10.1
INSL 14.5
S 8
CDI 24
PL 4.4
Classes
Com cobertura・Metal duro VP10H
Modelo 2D (DXF)
Nome do arquivo CAD Download
TAWNH2400T
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Modelo 3D detalhado (STP,STL)
Nome do arquivo CAD Download
TAWNH2400T
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Show more

Estoque

:Estoque mantido.
:Sem estoque, produzido somente por pedido.
:Estoque mantido. Será substituído por novos produtos.
:Estoque mantido no Japão.

  • Broca
