Insertos para torneamento

VBET1103V3R-SRF

Informação do produto

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Ampliar ]

Tipo   [Ampliar ]

Diâmetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nome da classe Metal duro
Classe MT9005
ANSI VBET22V3LRSRF
Sentido de corte R
Estoque

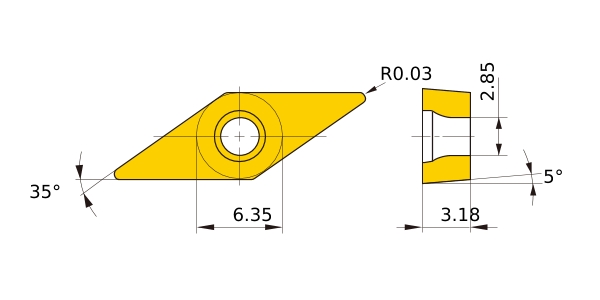

Unidade de comprimento M
D1 2.85
IC 6.35
EPSR 35°
AN 5°
S 3.18
RE 0.03
Quebra-cavaco R-SRF
Classes
Com cobertura・Metal duro MS7025
Com cobertura・Metal duro MP9025
Com cobertura・Metal duro MS9025
Com cobertura・Metal duro VP30RT
