立铣刀(可转位刀片式)

DCCC
（大切削深度加工用可转位刀片式立铣刀）

DCCCR4015S42

产品信息

采用不等螺旋刃与左螺旋，防止高频振颤。

实际产品与显示图像存在不一致情况，敬请留意。

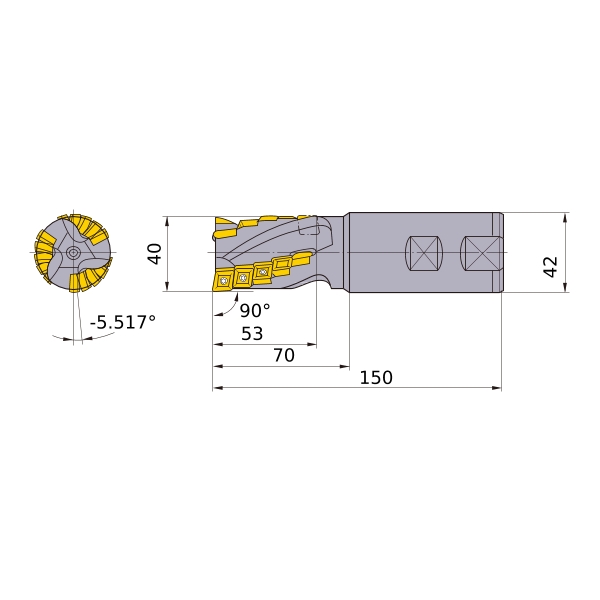

尺寸 ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

切削方向

库存

长度单位

DCON

KAPR

90°

150

APMX

GAMP

-8°

GAMF

-5.517°

1.3

Cutting item count: CICT

Peripheral effective cutting edge count: ZEFP

Face effective cutting edge count: ZEFF

2D 模型 (DXF)
CAD数据名称	下载
DCCCR4015S42	Disclaimer Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility. As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free. If you agree to this disclaimer, please select “Agree” below. Thank you for your understanding and cooperation.

2D 模型 (DXF)

CAD数据名称

下载

DCCCR4015S42

3D 细节模型 (STP,STL)
CAD数据名称	下载
DCCCR4015S42	Disclaimer Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility. As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free. If you agree to this disclaimer, please select “Agree” below. Thank you for your understanding and cooperation.

3D 细节模型 (STP,STL)

CAD数据名称

下载

DCCCR4015S42
