立铣刀(可转位刀片式)

WWX200
（通用一般切削用）

WWX200R2802SA25S

产品信息

  • 可使用6个刃角的负角型刀片，可提高生产效率并降低每个零部件的成本。
  • 刀片厚度的增加可有效防止刀片破损。
  • 多刃角、自定位的刀片可实现稳定且可靠的加工。
  • 采用内置型安装螺栓

实际产品与显示图像存在不一致情况，敬请留意。

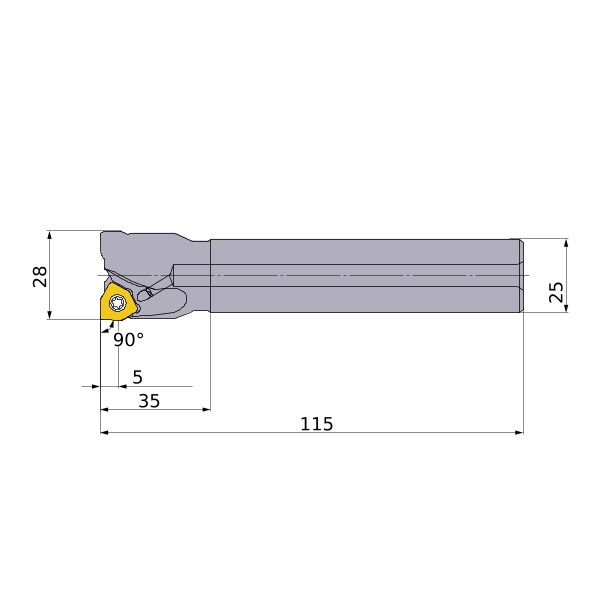

图   [放大 ]

图   [放大 ]

尺寸 (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
切削方向 R
库存
长度单位 M
DC 28
DCON 25
KAPR 90°
LF 115
LH 35
APMX 5
GAMP -6°
GAMF -17°
WT 0.4
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 27400
