旋转刀具用刀片 >6NMU0906040PNER-M

旋转刀具用刀片

6NMU0906040PNER-M

产品信息

实际产品与显示图像存在不一致情况，敬请留意。

图   [放大 ]

图   [放大 ]

尺寸 (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
材料分类名称 硬质合金
材料 MV1020
ANSI型号 6NMU0906040PNER-M
库存

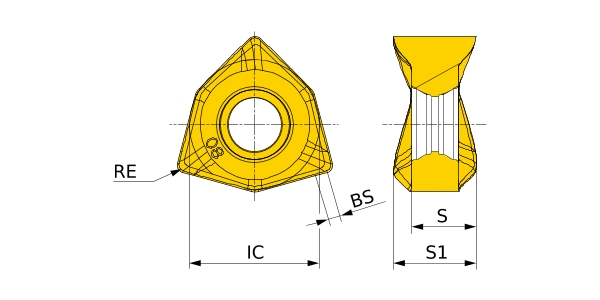

长度单位 M
IC 9
BS 1.6
S1 6.1
S 5.3
RE 0.4
断屑槽 M
按材料分类一览
涂层・硬质合金 MC5020
涂层・硬质合金 MP7130
涂层・硬质合金 MP6120
涂层・硬质合金 MP6130
涂层・硬质合金 MP9120
涂层・硬质合金 MP9130
涂层・硬质合金 VP15TF
