Boring >C-SCLC_C_INCH >C-SCLCL-062

Boring

C-SCLC_C_INCH


C-SCLCL-062 EDP:100472

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.

The actual product may differ from the displayed image.

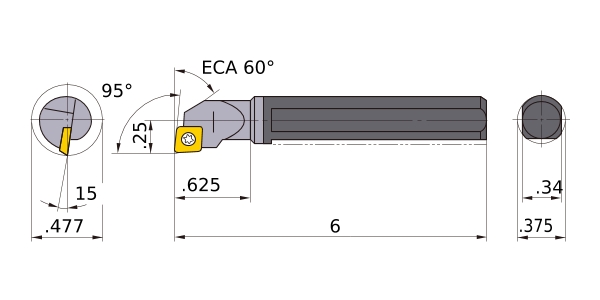

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI C06M-SCLCL2
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .477
DCON .375
KAPR 95°
LF 6
LDRED .625
WF .25
H .34
GAMF 15
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__21.5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
