Boring >C-SDQC_C_INCH >C-SDQCL-082

Boring

C-SDQC_C_INCH


C-SDQCL-082 EDP:100479

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.

The actual product may differ from the displayed image.

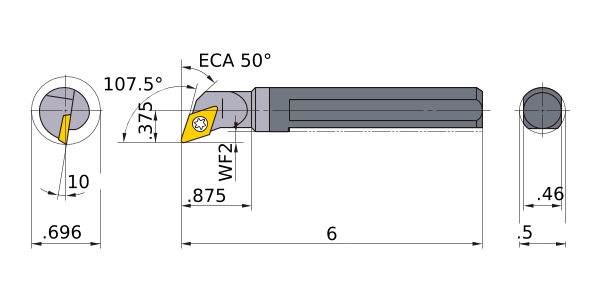

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI C08M-SDQCL2
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .696
DCON .5
KAPR 107.5°
LF 6
LDRED .875
WF .375
H .46
GAMF 10
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__21.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Insert

  • Spare Parts
