Boring >C-SDQC_C_INCH >C-SDQCL-123

Boring

C-SDQC_C_INCH


C-SDQCL-123 EDP:100481

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.

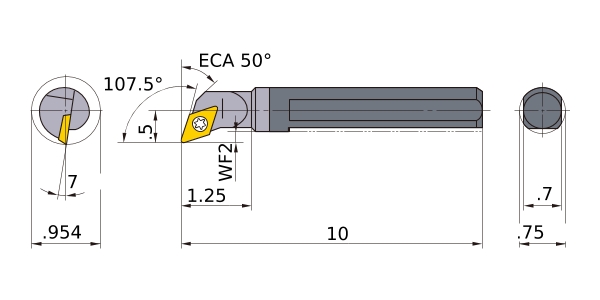

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI C12S-SDQCL3
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .954
DCON .75
KAPR 107.5°
LF 10
LDRED 1.25
WF .5
H .7
GAMF 7
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__32.5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
