Boring >M-FSDQC_INCH >M-FSDQCR-123-C

Boring

M-FSDQC_INCH
（Dimple Bar）

M-FSDQCR-123-C EDP:307441

Product Information

  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 6 times the diameter.
  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX12S-SDQCR3
Sales unit 1
Hand R
Stock
Unit of Length I

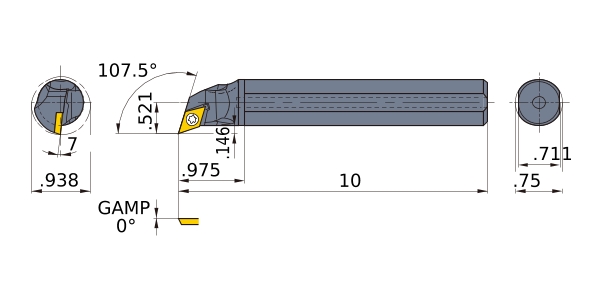

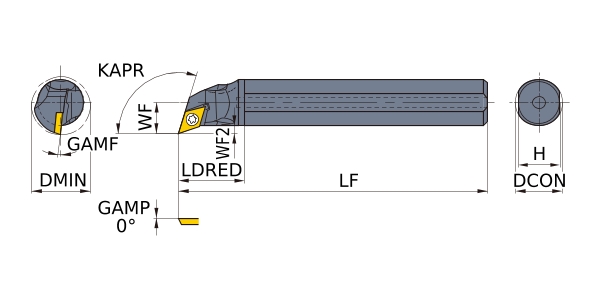

DMIN .938
DCON .75
KAPR 107.5°
LF 10
LDRED .975
WF .521
H .711
WF2 .146
GAMF 7
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__32.5
2D Model (DXF)
CAD data name Download
M-FSDQCR-123-C
CAD
