Boring >S-MCLN_INCH >S-MCLNL-164

Boring

S-MCLN_INCH


S-MCLNL-164 EDP:104345

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.

The actual product may differ from the displayed image.

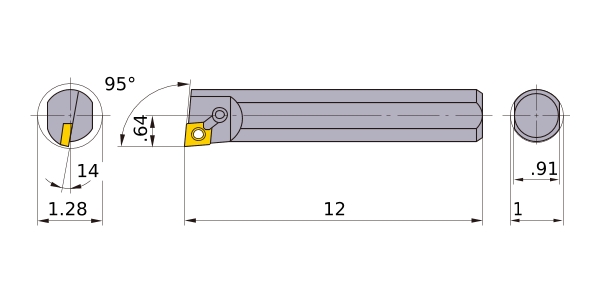

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S16T-MCLNL4
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.28
DCON 1
KAPR 95°
LF 12
WF .64
H .91
GAMF 14
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
