Boring >S-MCLN_INCH >S-MCLNL-204

Boring

S-MCLN_INCH


S-MCLNL-204 EDP:104346

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.

The actual product may differ from the displayed image.

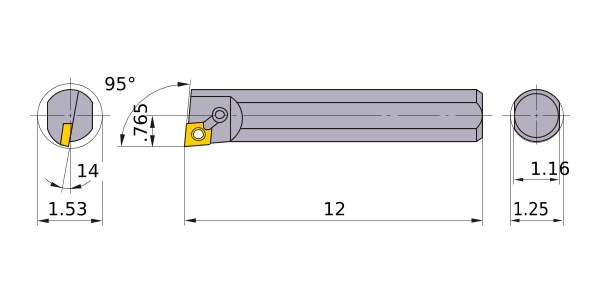

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S20U-MCLNL4
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.53
DCON 1.25
KAPR 95°
LF 12
WF .765
H 1.16
GAMF 14
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__43
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Insert

  • Spare Parts
