Boring >S-MCLN_INCH >S-MCLNR-284

Boring

S-MCLN_INCH


S-MCLNR-284 EDP:104355

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.

The actual product may differ from the displayed image.

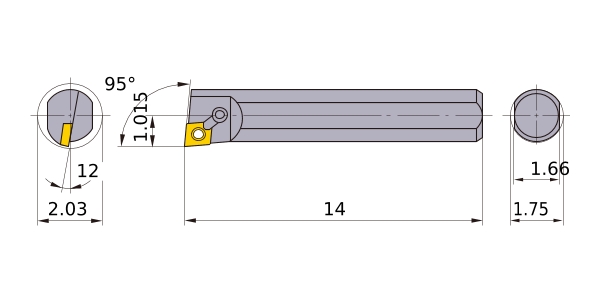

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S28U-MCLNR4
Sales unit 1
Hand R
Stock
Unit of Length I

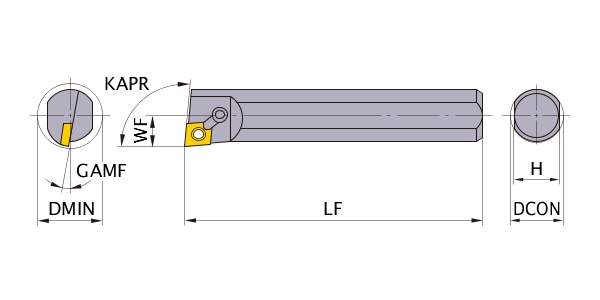

DMIN 2.03
DCON 1.75
KAPR 95°
LF 14
WF 1.015
H 1.66
GAMF 12
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__43
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
