Boring >S-MTFN_INCH >S-MTFNR-283X

Boring

S-MTFN_INCH


S-MTFNR-283X EDP:387276

Product Information

  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

The actual product may differ from the displayed image.

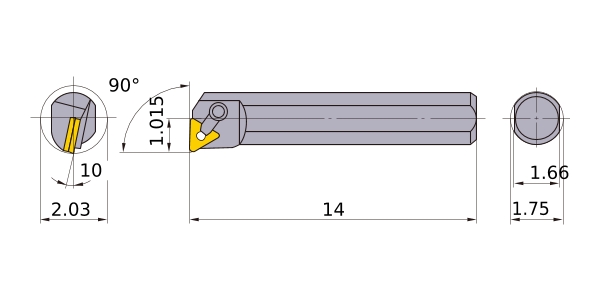

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S28U-MTFNR3
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 2.03
DCON 1.75
KAPR 90°
LF 14
WF 1.015
H 1.66
GAMF 10
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__33

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
