Boring >S-MVUN_INCH >S-MVUNL-203

Boring

S-MVUN_INCH


S-MVUNL-203 EDP:104406

Product Information

  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length I

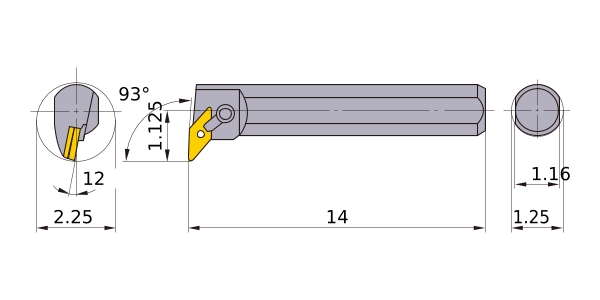

DMIN 2.25
DCON 1.25
KAPR 93°
LF 14
WF 1.125
H 1.16
GAMF 12
Peripheral effective cutting edge count: ZEFP 1
Insert Number VN__33

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
