Boring >S-SCLC_INCH >S-SCLCR-062

Boring

S-SCLC_INCH


S-SCLCR-062 EDP:104426

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

The actual product may differ from the displayed image.

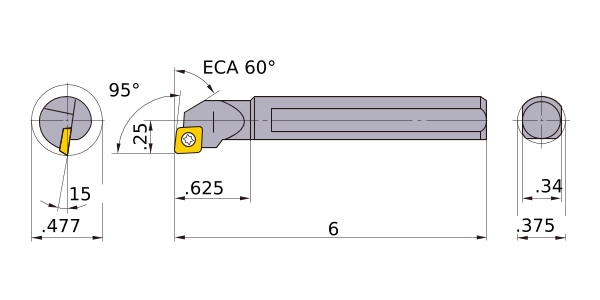

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S06K-SCLCR2
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .477
DCON .375
KAPR 95°
LF 6
LDRED .625
WF .25
H .34
GAMF 15
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__21.5
2D Model (DXF)
CAD data name Download
S-SCLCR-062
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-SCLCR-062
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-SCLCR-062_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
