Boring >S-SCLC_INCH >S-SCLCL-062

Boring

S-SCLC_INCH


S-SCLCL-062 EDP:104420

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

The actual product may differ from the displayed image.

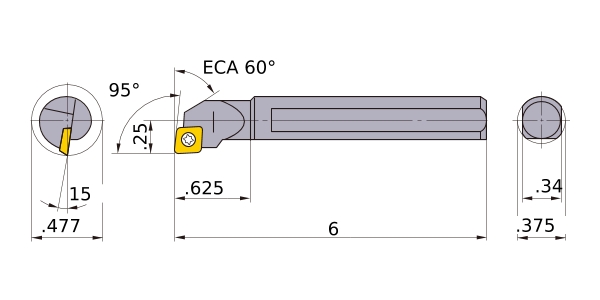

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S06K-SCLCL2
Sales unit 1
Hand L
Stock

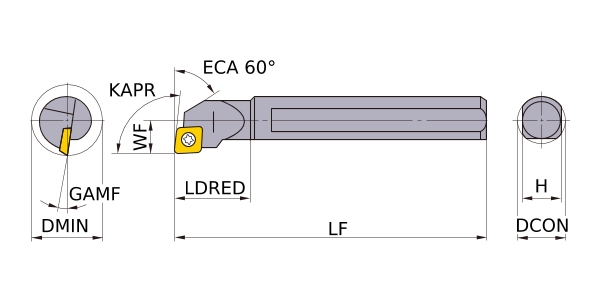

Unit of Length I
DMIN .477
DCON .375
KAPR 95°
LF 6
LDRED .625
WF .25
H .34
GAMF 15
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__21.5
2D Model (DXF)
CAD data name Download
S-SCLCL-062
