Boring >S-SCLC_INCH >S-SCLCL-123

Boring

S-SCLC_INCH


S-SCLCL-123 EDP:104423

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

The actual product may differ from the displayed image.

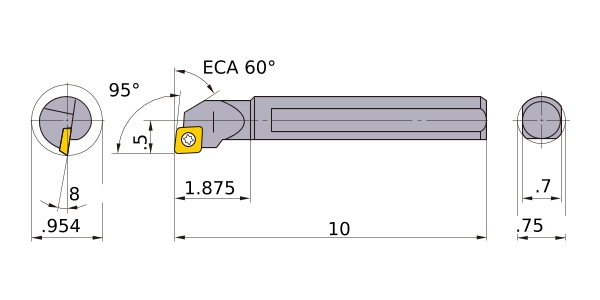

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S12S-SCLCL3
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .954
DCON .75
KAPR 95°
LF 10
LDRED 1.875
WF .5
H .7
GAMF 8
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__32.5
