Boring >S-SSKC_INCH >S-SSKCL-164

Boring

S-SSKC_INCH


S-SSKCL-164 EDP:104458

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

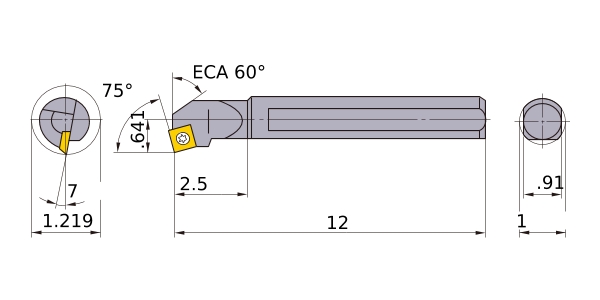

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S16T-SSKCL4
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.219
DCON 1
KAPR 75°
LF 12
LDRED 2.5
WF .641
H .91
GAMF 7
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number SC__43
2D Model (DXF)
CAD data name Download
S-SSKCL-164
