Boring >S-STFE_INCH >S-STFER-163

Boring

S-STFE_INCH


S-STFER-163 EDP:104468

Product Information

  • Shank sizes φ.625inch thru φ1.000inch.
  • Screw-on type
  • Recommended for aluminum, nonferrous metals and plastics.

The actual product may differ from the displayed image.

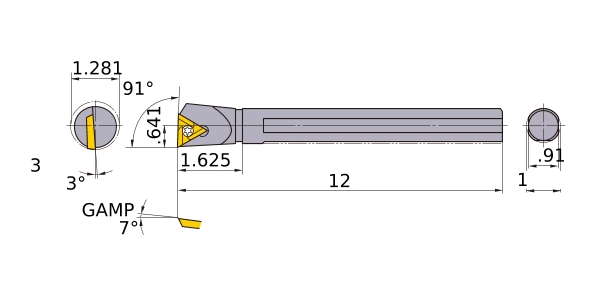

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S16T-STFEL3
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 1.281
DCON 1
KAPR 91°
LF 12
LDRED 1.625
WF .641
H .91
GAMF 3
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TE_32
