Boring >S-SVQC_INCH >S-SVQCL-102

Boring

S-SVQC_INCH


S-SVQCL-102 EDP:104484

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S10R-SVQCL2
Sales unit 1
Hand L
Stock
Unit of Length I

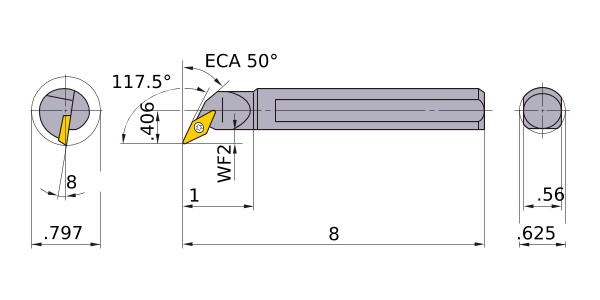

DMIN .797
DCON .625
KAPR 117.5°
LF 8
LDRED 1
WF .406
H .56
GAMF 8
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__22
2D Model (DXF)
CAD data name Download
S-SVQCL-102
CAD
