Boring >S-SVUC_INCH >S-SVUCR-163

Boring

S-SVUC_INCH


S-SVUCR-163 EDP:104495

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I

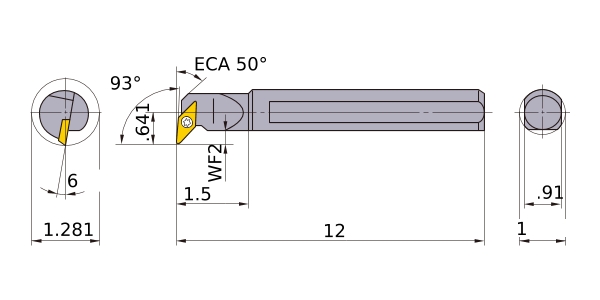

DMIN 1.281
DCON 1
KAPR 93°
LF 12
LDRED 1.5
WF .641
H .91
GAMF 6
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__33
2D Model (DXF)
CAD data name Download
S-SVUCR-163
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-SVUCR-163
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
