Boring >S-DDUN_INCH >S-DDUNR-204-C

Boring

S-DDUN_INCH
(Double Clamp Dimple Bar)

S-DDUNR-204-C EDP:371848

Product Information

  • Excellent cutting edge repeatability.
  • Negative rake.
  • New double clamp type.
  • Holds inserts securely.

The actual product may differ from the displayed image.

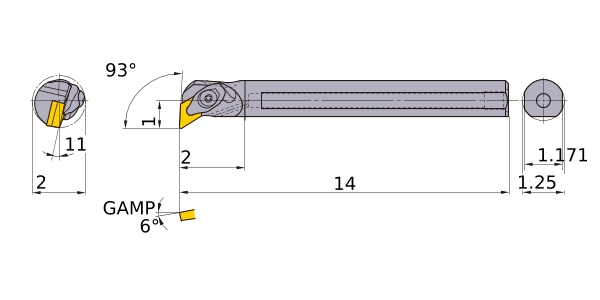

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI AX20U-DDUNR4
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 2
DCON 1.25
KAPR 93°
LF 14
LDRED 2
WF 1
H 1.171
GAMF 11
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__43
2D Model (DXF)
CAD data name Download
S-DDUNR-204-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-DDUNR-204-C
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-DDUNR-204-C_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
