Boring

S-DDUN_INCH
（Double Clamp Dimple Bar）

S-DDUNL-164-C EDP:371813

Product Information

  • Excellent cutting edge repeatability.
  • Negative rake.
  • New double clamp type.
  • Holds inserts securely.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

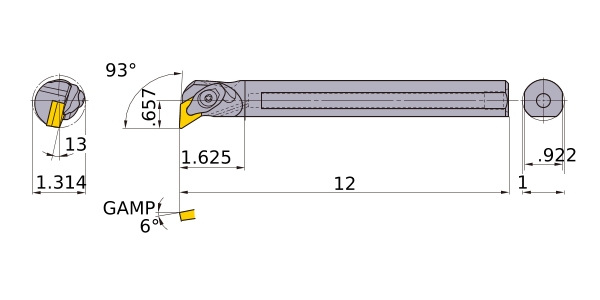

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI AX16T-DDUNL4
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.314
DCON 1
KAPR 93°
LF 12
LDRED 1.625
WF .657
H .922
GAMF 13
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__43
2D Model (DXF)
CAD data name Download
S-DDUNL-164-C
