Boring >S-DSKN_INCH >S-DSKNL-204-C

Boring

S-DSKN_INCH
（Double Clamp Dimple Bar）

S-DSKNL-204-C EDP:371872

Product Information

  • Negative rake.
  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge repeatability.

The actual product may differ from the displayed image.

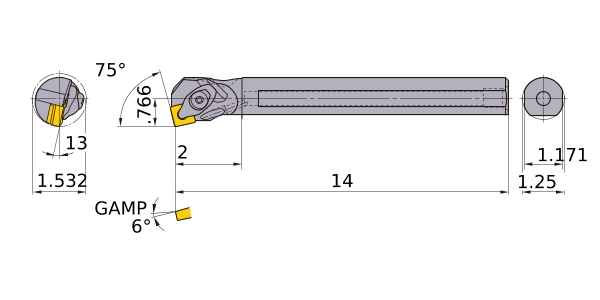

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI AX20U-DSKNL4
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.532
DCON 1.25
KAPR 75°
LF 14
LDRED 2
WF .766
H 1.171
GAMF 13
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__43
2D Model (DXF)
CAD data name Download
S-DSKNL-204-C
