Boring

S-DSKN_INCH
（Double Clamp Dimple Bar）

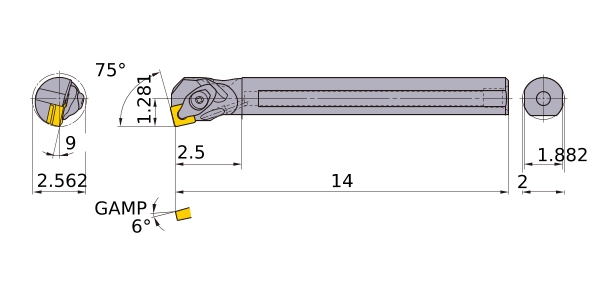

S-DSKNR-324-C EDP:429691

Product Information

  • Negative rake.
  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge repeatability.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI AX32U-DSKNR4
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 2.562
DCON 2
KAPR 75°
LF 14
LDRED 2.5
WF 1.281
H 1.882
GAMF 9
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__43
