Boring >S-DWLN_INCH >S-DWLNR-123-C

Boring

S-DWLN_INCH
（Double Clamp Dimple Bar）

S-DWLNR-123-C EDP:371961

Product Information

  • Negative rake.
  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge repeatability.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI AX12S-DWLNR3
Sales unit 1
Hand R
Stock
Unit of Length I

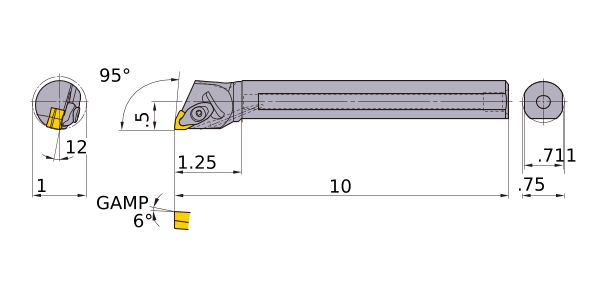

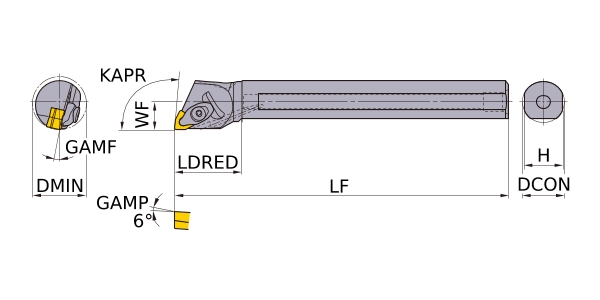

DMIN 1
DCON .75
KAPR 95°
LF 10
LDRED 1.25
WF .5
H .711
GAMF 12
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number WN__33
2D Model (DXF)
CAD data name Download
S-DWLNR-123-C
