Boring >S-DWLN_INCH >S-DWLNR-284-C

Boring

S-DWLN_INCH
(Double Clamp Dimple Bar)

S-DWLNR-284-C EDP:429851

Product Information

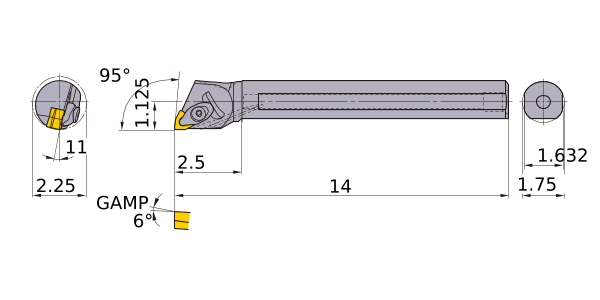

  • Negative rake.
  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge repeatability.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI AX28U-DWLNR4
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 2.25
DCON 1.75
KAPR 95°
LF 14
LDRED 2.5
WF 1.125
H 1.632
GAMF 11
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number WN__43
2D Model (DXF)
CAD data name Download
S-DWLNR-284-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-DWLNR-284-C
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-DWLNR-284-C_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
