Boring >S-DCLN_INCH >S-DCLNL-164-C

Boring

S-DCLN_INCH
(Double Clamp Dimple Bar)

S-DCLNL-164-C EDP:371776

Product Information

  • Excellent cutting edge repeatability.
  • Negative rake.
  • New double clamp type.
  • Holds inserts securely.

The actual product may differ from the displayed image.

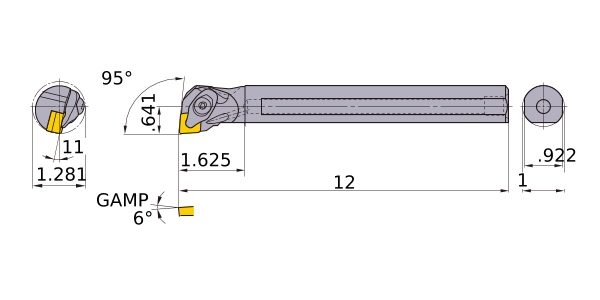

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI AX16T-DCLNL4
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.281
DCON 1
KAPR 95°
LF 12
LDRED 1.625
WF .641
H .922
GAMF 11
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__43
2D Model (DXF)
CAD data name Download
S-DCLNL-164-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-DCLNL-164-C
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-DCLNL-164-C_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
