Boring >S-FSCLP_INCH >S-FSCLPL-103-C

Boring

S-FSCLP_INCH


S-FSCLPL-103-C EDP:382598

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 6 times the diameter.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI AX10S-SCLPL3
Sales unit 1
Hand L
Stock
Unit of Length I

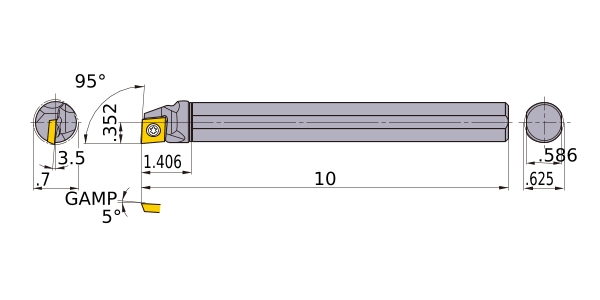

DMIN .7
DCON .625
KAPR 95°
LF 10
LDRED 1.406
WF .352
H .586
GAMF 3.5
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__32
2D Model (DXF)
CAD data name Download
S-FSCLPL-103-C
