Boring >S-FSTUP_INCH >S-FSTUPR-102-C

Boring

S-FSTUP_INCH


S-FSTUPR-102-C EDP:382707

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Excellent vibration resistance due to light dimple head.
  • l/d is 3 to 6 times the diameter.
  • Chip disposal is improved by having two channels for chip evacuation.

The actual product may differ from the displayed image.

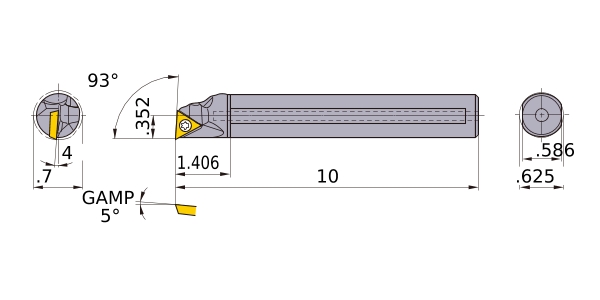

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI AX10S-STUPR2
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .7
DCON .625
KAPR 93°
LF 10
LDRED 1.406
WF .352
H .586
GAMF 4
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__22
